One Curve. Any screen.

Curve is a small, battery-powered ARM computer that supports any screen. Plug it into a TV, monitor, touchscreen or XR glasses and take it with you anywhere.

Left to right: the CB302B carrier board, the board in its compact housing, and the Curve Developer Kit with a touchscreen
  • Compute

    NVIDIA Jetson Orin Nano or Orin NX. Up to 157 TOPS with Orin NX 16GB in Super Mode (NVIDIA's figure)

  • Display

    Any USB-C DisplayPort screen

  • Power

    Milwaukee M12 battery or 45 W USB-C PD

  • Software

    Linux for Tegra with JetPack, Android in beta

Two products

Choose your starting point.

Both are built on the same board. The kit arrives ready to use. The board is for people who want to supply the module and build the rest themselves.

Coming soon

Curve Developer Kit

The complete system. Open the case, plug in a screen and start building.

  • CB302B board with a Jetson Orin module and NVMe SSD fitted

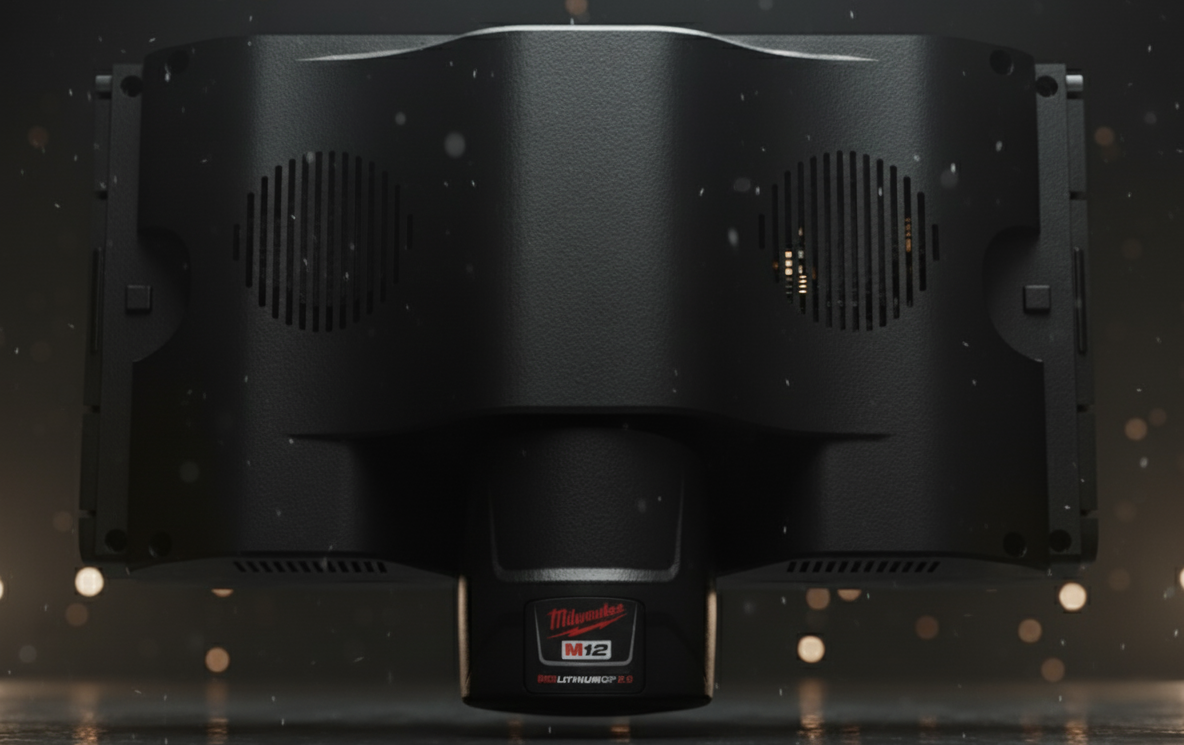

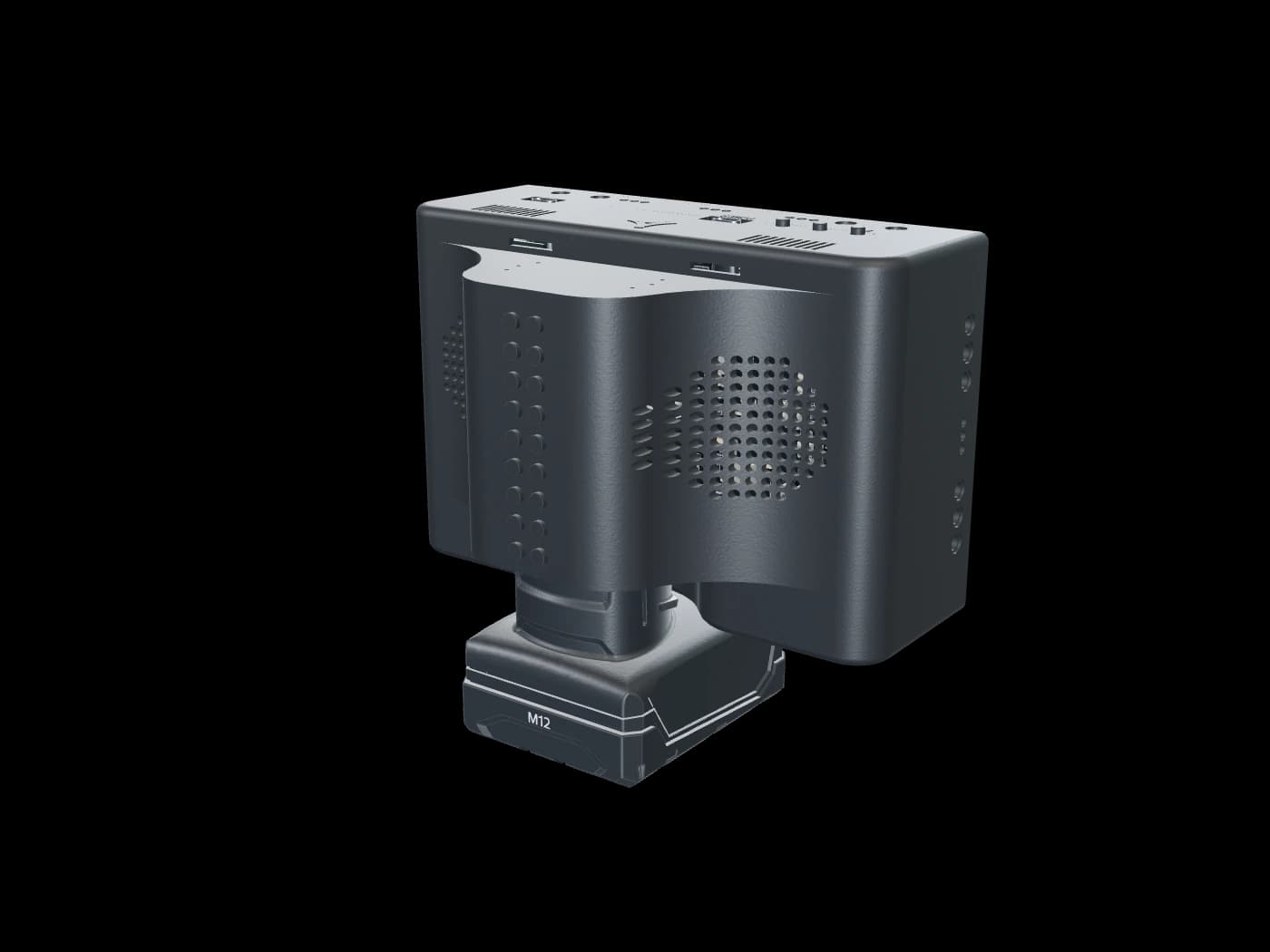

  • Desktop housing and a battery locking housing for Milwaukee M12 packs
  • Software already installed on the SSD
  • Branded carry case
Reserve now · no payment taken

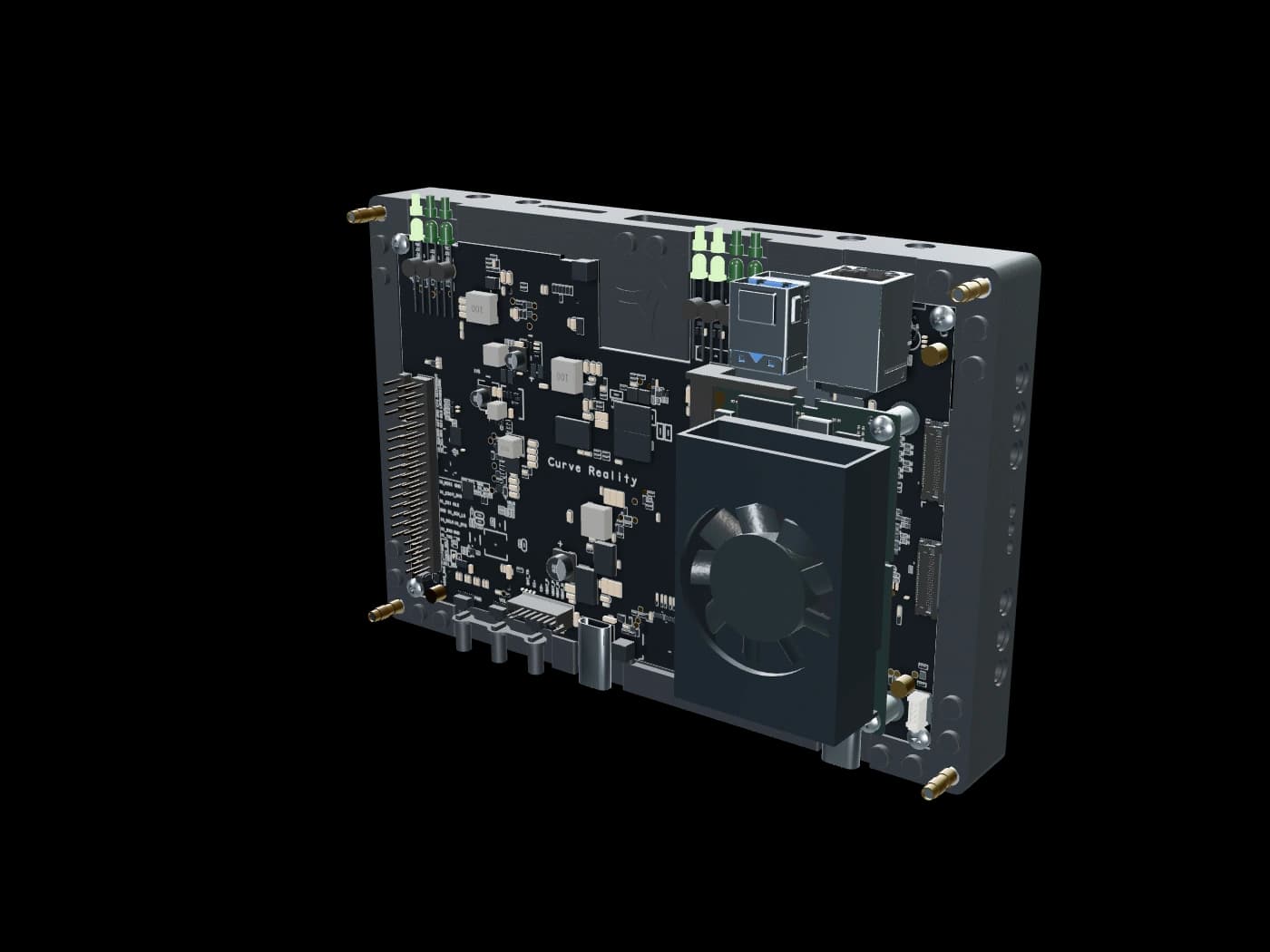

CB302B Carrier Board

The board inside, on its own. For AI and robotics builders who bring their own Jetson module.

  • Board in its frame, with stereo speakers and a microphone
  • Fits Jetson Orin Nano 4GB and 8GB, Orin NX 8GB and 16GB
  • Add a desktop or battery locking housing and the carry case if you want them
  • No module or storage included

Every screen

Bring your own screen.

Video leaves Curve over USB-C using DisplayPort Alt Mode. One cable connects whichever display suits the job.

Curve in its compact housing on a desk, connected to a monitor, keyboard and mouseShown in the compact desktop housing

One core

The CB302B is at the heart of both.

Every Curve is built on the same carrier board. Buy it inside the Developer Kit, or on its own.

  • Close-up of the Jetson Orin module seated on the CB302B

    NVIDIA Jetson Orin

    Takes an Orin Nano or Orin NX module. Up to 157 TOPS with Orin NX 16GB in Super Mode (NVIDIA's figure).

  • Close-up of the Wi-Fi module and NVMe SSD on the underside of the CB302B

    NVMe storage and wireless

    M.2 Key M for an NVMe SSD up to 2280. M.2 Key E with a Wi-Fi and Bluetooth module fitted.

  • Close-up of the USB-C DisplayPort connector

    DisplayPort over USB-C

    One cable for display, USB 3.2 data and 5 V power out. A second USB-C port takes 45 W PD and handles debug.

  • Close-up of the two USB-A ports and the Ethernet jack

    USB-A and Gigabit Ethernet

    Two USB-A ports and an RJ45 Gigabit Ethernet jack for peripherals and wired networks.

  • Close-up of the labelled 40-pin header

    40 pins to build on

    GPIO, I²C, SPI, I²S and UART on a 40-pin header in the Orin Nano Developer Kit format, with readable pin labels.

  • Close-up of the IMU area of the CB302B

    Sound and motion on board

    Stereo speakers, a microphone and a 9-axis IMU (BMI270 + BMM150), plus two 22-pin MIPI CSI camera connectors.

Full CB302B specifications

Battery pack not included

Power

Swap the battery. Keep working.

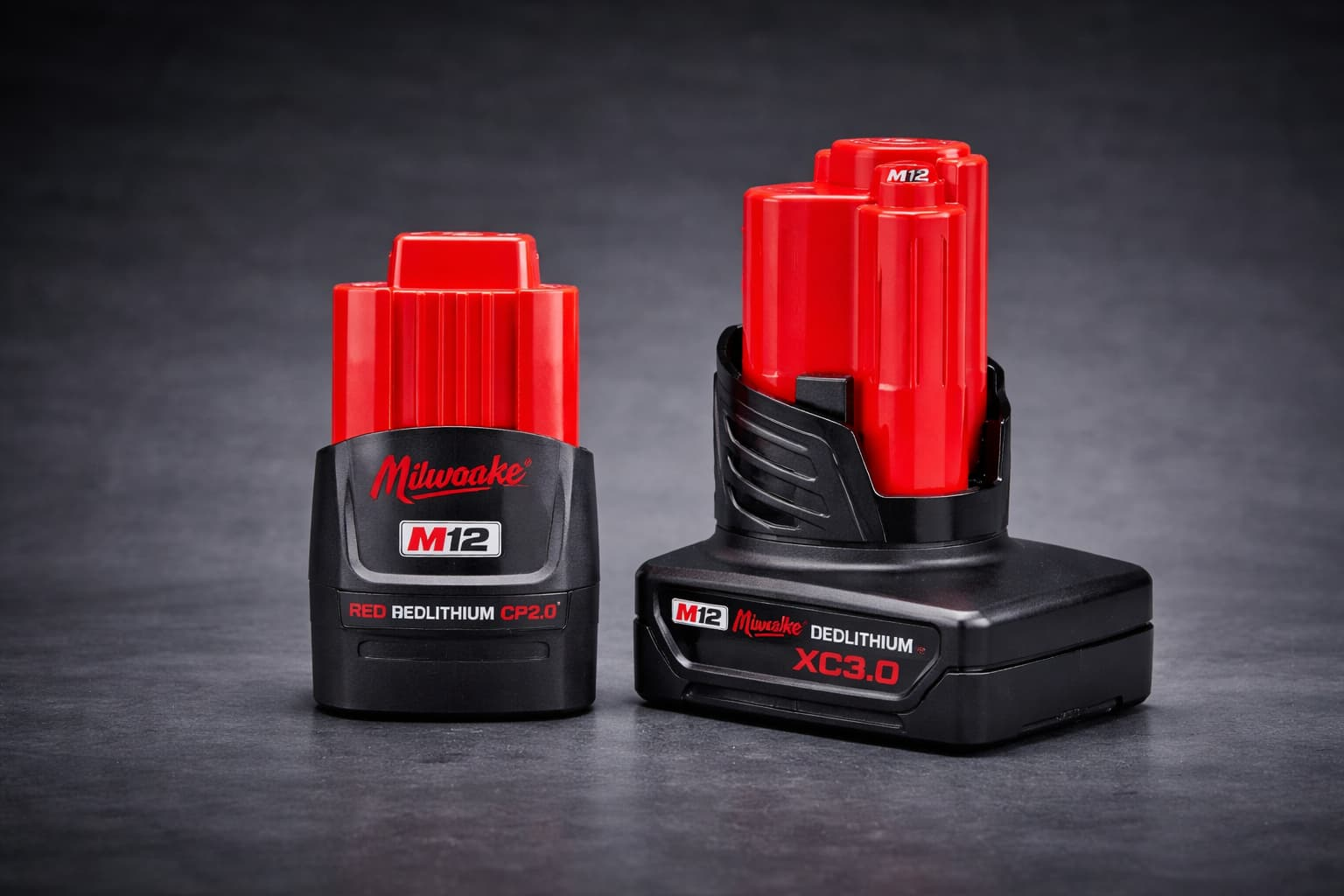

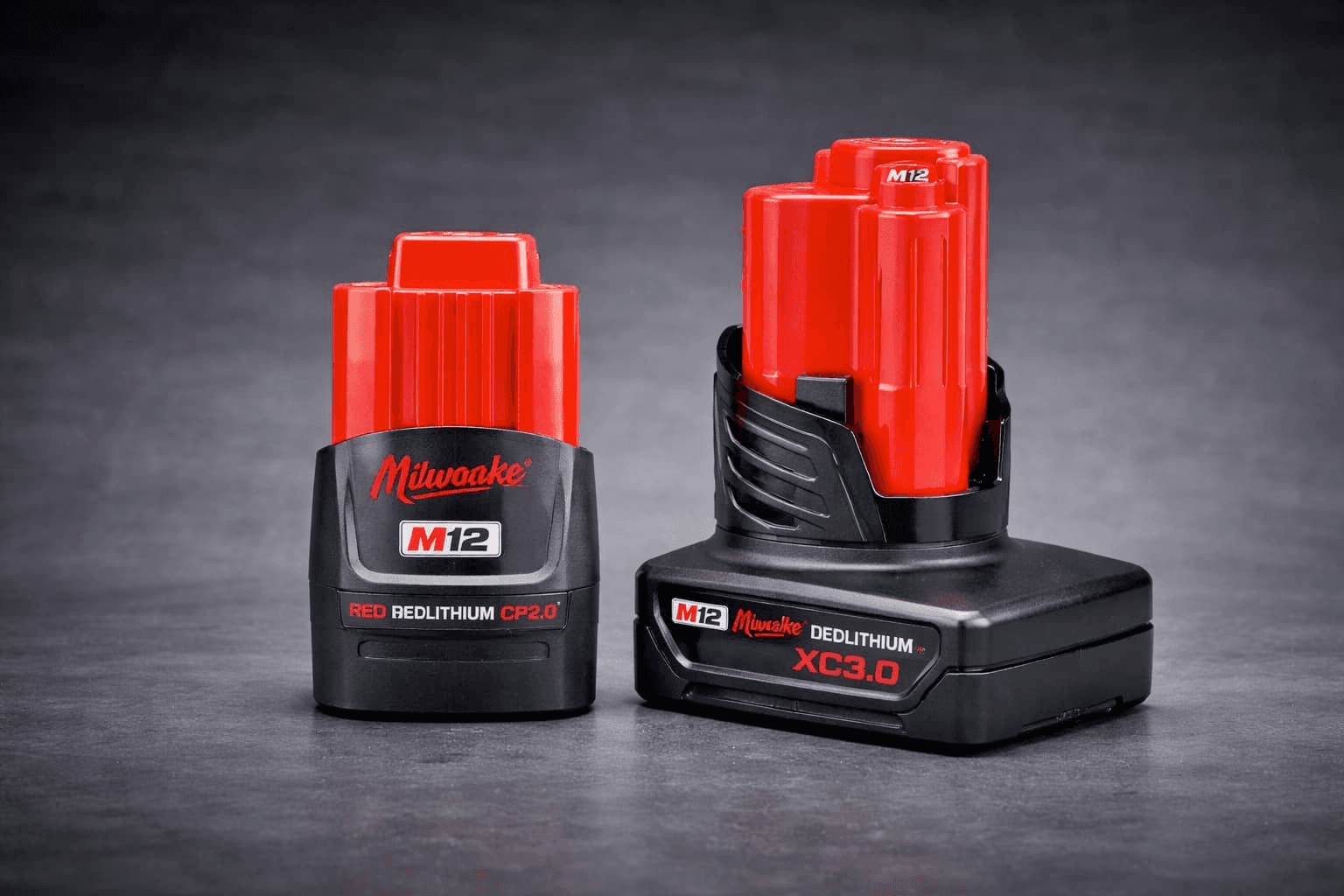

Curve runs from genuine Milwaukee M12 packs, the kind sold in hardware stores. An internal bridge keeps the board powered while you change one pack for another.

  • BatteryMilwaukee M12, 3Ah, 6Ah or 9Ah. Bring your own pack.
  • At the desk45 W USB-C PD
  • RuntimeDepends on the module, power mode, workload and pack

Software

Linux and Android on the same hardware.

Develop on NVIDIA's own Linux stack, or run Android natively. Both use the Jetson's GPU, and Curve dual boots, so you choose one when you turn it on.

  • Linux for Tegra (L4T) with NVIDIA JetPack

    Supported

    Ubuntu-based Linux with CUDA, cuDNN and TensorRT for GPU-accelerated AI. ROS compatible.

  • CurveOS / Android 17

    Beta

    Native Android on the Jetson Orin Nano 8GB and Orin NX 16GB, with GPU acceleration. Dual boots with Linux for Tegra. Formerly LineageOS 24.

  • Windows 11 ARM

    Experimental

    Runs in a virtual machine on Linux for Tegra.

Compare

Kit or board?

The Developer Kit is the whole computer. The CB302B is the board it is built on, without the module or storage.

FeatureComing soonCurve Developer KitReserve nowCB302B Carrier Board
Best forDevelopers who want a complete computer that works when the case opensBuilders who own a Jetson module, and teams designing the board into a product
CB302B boardIncludedIncluded
Frame, speakers, micIncludedIncluded
Wi-Fi and BluetoothIncludedIncluded
Jetson Orin moduleIncluded, fittedBring your own
NVMe SSDIncluded, software installedBring your own
HousingDesktop and battery locking housingsOptional, either or both
Carry caseIncludedOptional
Battery packBring your own Milwaukee M12Bring your own Milwaukee M12
PriceAnnounced at launchFinal price to come
How to get itComing soon. Join the list for one email at launch.Reserve today. No payment is taken.
See the Developer KitSee the CB302B

What people build

From the desk to the robot.

  • Local AI

    Run models on hardware you own, with an NVIDIA GPU, CUDA and TensorRT.

  • Robotics

    Develop at the desk on USB-C power, then put the same computer on the robot and run it from a battery.

  • Wearable XR

    Keep the headset light. Wear the computer on a belt and drive the display over USB-C.

  • Teaching labs

    One board for four Orin modules, ROS compatible, with the 40-pin header students already know.

A gloved hand holds a finished CB302B board on the production line

Made for real

Already on the production line.

The first production run is under way with EM3, our manufacturing partner. Boards are in production and nothing is shipping yet.

  • Since 2017Working with NVIDIA on compute for XR, edge and embedded systems
  • NVIDIAMember of the NVIDIA Inception program
  • PatentsCited as prior art in filings from Apple, Sony, Nintendo and others
About Curve Reality

Questions

Before you choose.

Something else? Ask the team

What does Curve Reality make?

Two things. The Curve Developer Kit is a complete, battery-powered NVIDIA Jetson Orin computer: board, module, storage, housing and carry case. The CB302B Carrier Board is the board inside it, sold on its own for people who want to fit their own module and build it into something.

Which one should I get?

Get the Developer Kit if you want to open the case and start working. Get the CB302B if you already own a Jetson Orin Nano or Orin NX module, or you are designing the board into a robot or product of your own.

Is anything shipping yet?

Not yet. The boards are in production and nothing is shipping today. The Developer Kit is coming soon, and you can reserve a CB302B now. No payment is taken when you reserve.

Can it run from a battery?

Yes. It runs from genuine Milwaukee M12 packs (3Ah, 6Ah or 9Ah), and an internal bridge keeps the board powered while you change packs. It also runs from 45 W USB-C PD. We don't sell battery packs, so bring your own.

Which operating systems does it run?

Linux for Tegra (L4T) with NVIDIA JetPack is supported on all four modules. CurveOS, our native Android 17 (formerly LineageOS 24), runs with GPU acceleration on the Orin Nano 8GB and Orin NX 16GB and is in beta. It dual boots with Linux, so you choose one when you turn it on. Windows 11 ARM runs in an experimental virtual machine on Linux for Tegra.

Does it work with Jetson AGX Orin or older Jetson modules?

No. The CB302B is designed for four modules: Jetson Orin Nano 4GB, Orin Nano 8GB, Orin NX 8GB and Orin NX 16GB. Jetson AGX Orin is not supported, and neither are Xavier, TX1, TX2, TX2 NX or the original 2019 Jetson Nano.
